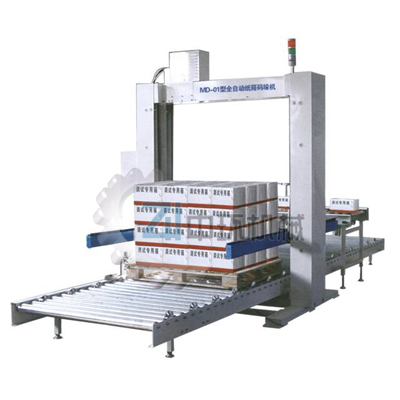

MD-01型全自动纸箱码垛机
主要特点:
•设计新型,结构精巧。
•汉显触摸屏显示,操作简单。
•导用先进的伺服系统,性能可靠。
•可编程序控制制器自动控制,对运行过程中出现的故障进行声光报警。
主要技术参数
外型尺寸 | 长2600×宽2200×高2700 |
标准托板尺寸 | 长1200×宽1200 |
每层最大重量 | 250KG |
码垛高度 | 最大1800mm |
码垛能力 | 约10-15箱/分(根据纸箱尺寸与码垛形式而定) |
气 源 | 0.5-0.6Mpa 0.4m³/分 |
电 源 | 3相380V 50HZ |
机械重量 | 约800-1000KG |
MD-01 type automatic carton stacker machine
Feature:
New type designed, structure refined.
Chinese display touch-sensitive screen, easy to operate.
Using advanced servo system, dependable capability.
Programming controller move automatically, give a sound & light alarm if there’s something wrong in circulate.
Technique Parameter
Exterior dimension | 2600×2200×2700 |
Standard splint dimension | 1200×1200 |
Maximum weight at each layer | 250KG |
Height of stacking | Max.1800mm |
Capability of stacking | About 10-15 cases /min. (according to the dimension of the case and the way of stacking) |
Gas | 0.5-0.6Mpa 0.4m³/min. |
Voltage | 3phase 380V 50HZ |
Weight of machine | About 800-1000KG |
