全自动粉剂灌装机ZH-GZF500

全自动粉剂灌装机ZH-GZF500

ZH-GZF500 全自动粉剂灌装机

主要特点
该自动充填包装机适用包装粉粒状物料。如奶粉、米粉、白糖、咖啡、味精、固体饮料、葡萄糖、固体医药等。
◆中/英文触摸屏人机界面，PLC控制系统，伺服电机驱动螺旋。
◆使用或瓶状容器包装，配置自动喂罐系统，可实现无瓶、缺瓶不灌装。
◆开门料箱，人性化易洗框式机架，整机结构、布局合理，更换包装品种，清理卫生及为方便。
◆称重反馈比重跟踪，重量超差报警、故障报警提示和排废功能，确保产品合格率。
◆工作数据可储存，备后使用，最多可储存10个工作参数。
有托罐、振动、吸尘功能。

主要技术参数
填充重量: 50-250g
包装精度: ≤±0.3-1%（视被充填物的特性和重量的变化而定）
包装速度: 单头25-30瓶/分 双头40-50瓶/分
电源/功率: 220V 50-60HZ 2kw
整机重量: 600kg

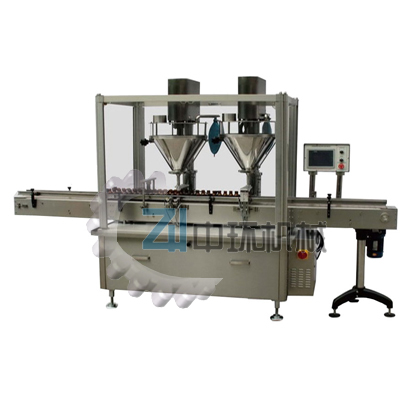

ZH-GZF500 Automatic Can Feeding Filling and Packing Machine
Feature
The machine is suitable for packing powdery &grainy product, for instance, milk powder, monosodium glutamate, solid beverage, icing sugar, dextrose, feed, coffee, solid medicament, powdery & grainy additive, dye, etc.
◆Chinese /English touch screen and HMI, PLC control system, auger is drived by servo motor.
◆Equipped with automatic can/bottle feeding system, implement to the functions of no-can-no-filling.
◆Open-door hopper, a frame type machine be designed the humanization to easily wash. Reasonable mechanical structre, easy to change size parts and clean up.
◆The functions of over-weight warning, error message display and failed packs detecting & deleting, which never let any reject to pass through, ensure the packing quality.
◆Max. 10 recipes can be saved for later using.
◆Have the functions of can support, vibration and dust extraction.
Technical Parameter
Filling Weight: 50-250g
Packing Accuracy: ≤±0.3-1%（According to packing weight and product specs）
Packing Speed: 25-30 can/min（one head）, 40-50 can/min（two heads）
Power Supply/Total Power: 220V  2kw
Use Tolerance/Air Pressure: 0.2m³/min 6-8kg/m²
Total Weight: 600kg
