全自动自吸式活塞灌装机ZH-ZX-3

全自动自吸式活塞灌装机ZH-ZX-3

ZH-ZX-3 全自动自吸式活塞灌装机
  本机采用PLC可编程控制，W.6英寸触摸屏人机界面系统，集光电传感、自动吸料、气动执行于一体的高科技灌装设备。对三种不同的物料可同时灌装，吸料方便、快捷，是离子烫1、2、3号物料灌装的理想设备。

  功能特点：
  ◆同时灌装三种不同的物料；
  ◆自吸式吸料，吸料方便；
  ◆可根据不同的瓶型在数分钟内完成切换，调整方便；
  ◆每个灌装头设有卡瓶装置，确保灌装定位精确。
 ◆可选配以夹瓶下压式拧盖机或自动旋盖机进行旋盖；

  主要技术参数:
适用瓶径: 40-100mm
计量精度: ±1%
灌装容量: 40-1000ml
生产能力: ≤180b/h
气压: 5kg
功率: 0.5kw
重量: 300kg
外型尺寸: 2000*1000*2300mm (L*W*H)

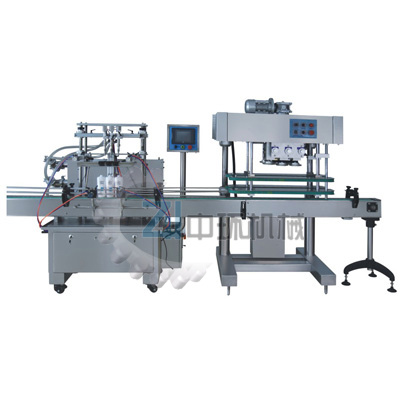

ZH-ZX-3 Full-automatic self-suction type piston filling machine
  The machine is a kind of high-tech filling device adopting PLC programmable logic control, W.6 inch touch screen human machine interface system, and integrating photoelectric sensing, automatic material sucking and pneumatic actuating. It can fill three kinds of different materials simultaneously. With convenient and rapid material sucking, it is an ideal device for filling No. 1, 2, 3 materials for ion hair burning.

  Feature:
  ◆ Filling three kinds of different materials simultaneously.
  ◆ Self-suction type material sucking, which is convenient.
  ◆Switching can be completed within several minutes according to different types of bottles with convenient adjustment.
  ◆Every filling head is provided with bottle clamping device to ensure an accurate filling position.
Bottle clamping and down pressing type screw capping machine or automatic capping
machine is optional for capping operation.

Technique Parameter:
Applicable bottle diameter: 40-100mm
Measurement accuracy: ±1%
Filling capacity: 40-1000ml
Production capacity: ≤180b/h
Pressure: 5kg
Power: 0.5kw
Weight: 300kg
Dimension: 2000*1000*2300mm (L*W*H)
