不干胶双面贴标机ZHTBS-660E

不干胶双面贴标机ZHTBS-660E

ZHTBS-660E不干胶双面贴标机
1. 本产品可广泛应用于方扁瓶、椭圆瓶的单、双面贴标。
2. 由PLC以及触摸屏控制。
3. 适用瓶子规格0到5L.
4. 贴标速度；0~26米/分钟
主要特点
 本产品可广泛应用于食品、化妆品、医药、农药等行业的方扁瓶、椭圆瓶的单、双面贴标。采用PLC自动化控置，操作简易，能实现有瓶自动上签，无瓶不上签，同时可存储十组以上的贴标参数记忆，可快速换样生产。采用伺服电机，实现闭环控制，故障率低，使用效果好，速度快。 本机所有接触物料处均采用优质不锈钢制造，符合GMP标准。
产品参数
1、电源：220V；50Hz
2、功率：2.5Kw
3、贴标速度；0~26米/分钟
4、适用纸卷内径：Φ75mm
5、最大纸卷外径：Φ350mm
6、标准标签高度．0~130mm
7、最大标签高度：190mm
8、贴标精度：±1mm
9、重量：约650Kg
10、外型尺寸：2400mm×1800mm × 1400mm

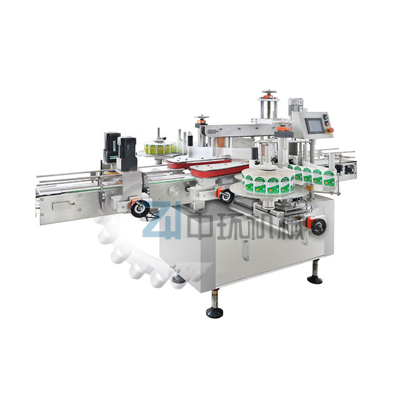

ZHTBS-660E Adhesive Front and Back Labeling Machine
1.Double side labeling for rectangular, square bottles, and elliptical bottles.
2.Controlled by computer (PLC) and touch screen control panel, so to achieve easy operating.
3.With volume of 0 to5L.
4.Labeling speed range : 0~26 meter/minute
Major Characteristics：
 1.This labeling machine is suitable for foodstuff, cosmetic, pharmaceutical, pesticide and other lines.
2.Double side labeler for rectangular bottles and square bottles. It is automatically controlled by computer (PLC) and touch screen control panel, so to achieve easy operating.
3.If there is no bottle, it will not label. More than ten groups of labeling parameters can be memorized.
4.The specifications can be easily changed. Servo motor helps to realize closed-loop control. It has advantages like low malfunction rate and high efficiency as well as fast speed.
 Main Performance Parameter：
1.Power supply : AC220V ;50Hz ( or according to client voltage requirement)
2.Power : 3kw
3.Labeling speed range : 0~26 meter/minute
4.Suitable label roll inner Diameter size : Ф75mm
5.Suitable label roll outside Diameter size : Ф350 Maximum
6.Standard label high size : 300mm
7.Maximum label high size : 300mm
8.Machine weight : 750kg
9.machine dimension ( L×W×H):3000mm×1200mm×1600mm
