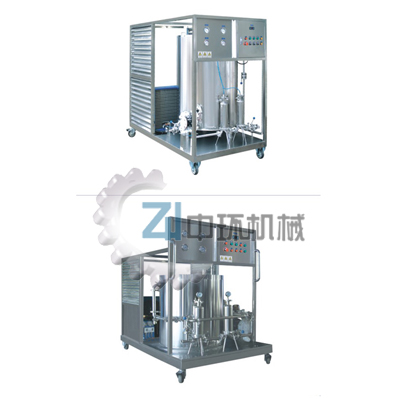

ZH香水冷冻过滤机
本产品是我公司最新开发出来的专业用化妆水、香水等经过冷冻对液体的澄清过滤;是化妆品厂过滤化妆水、香水的理想设备。本产品材质均采用优质304不锈钢或316L不锈钢制造,用美国进口气动隔膜泵,作为压力源,进行正压过滤。
连接管道采用卫生级抛光管件,均采用快装式连接形式,方便拆卸和清洗。
配套使用聚丙稀微孔过滤膜,广泛用于化妆品行业、科研部门、医院、实验室等单位对少量液体的澄清和除菌过滤,或微量化学分析,方便可靠。
标准配置
◆不锈钢保温冷冻罐及钛金属盘管
◆冷冻机组(产地法国)
◆防腐气动隔膜泵(产地美国)
◆聚丙稀微孔过滤膜
◆不锈钢移动支架
◆密封式电控系统及卫生级管件阀门
技术参数:
型号 |
ZH3P-200 |
ZH3P-300 |
ZH5P-300 |
ZH5P-500 |
ZH10P-500 |
ZH10P-1000 |
ZH15P-1000 |
冷冻功率 |
3P |
3P |
5P |
5P |
10P |
10P |
15P |
冷冻容量 |
200L |
300L |
300L |
500L |
500L |
1000L |
1000L |
过滤精度 |
0.2um |
0.2um |
0.2um |
0.2um |
0.2um |
0.2um |
0.2um |
ZH Perfume freezing filter
The product is a latest product developed by our company specially used for clarification and filtration of liquid such as cosmetics and perfume etc. after freezing. It is an ideal device for filtering cosmetics and perfume in cosmetic factories. The product is made of high quality 304 stainless steel or 316L stainless steel. The pneumatic diaphragm imported from USA is adopted for pressure source to carry out positive pressure filtration.
The connecting pipes are sanitary polishing pipes, which completely adopt rapid installation type connection form, with convenient assembly, disassembly and cleaning.
Equipped with polypropylene microporous filtration film, it can be widely used in cosmetics industry, scientific research department, hospital and laboratory etc. for clarification, bacteria removal and filtration of small amount of liquid, or micro chemical analysis, which is convenient and reliable.
Standard allocation:
◆ Stainless steel heat preservation freezing tank and titanium metal coil pipe;
◆ Freezing unit (place of origin France);
◆ Anticorrosive pneumatic diaphragm pump (place of origin USA);
◆ Polypropylene microporous filtration film;
◆ Stainless steel moveable supporter;
◆ Sealing type electric control system and sanitary pipe fittings and valves;
Technical parameter:
Model |
ZH3P-200 |
ZH3P-300 |
ZH5P-300 |
ZH5P-500 |
ZH10P-500 |
ZH10P-1000 |
ZH15P-1000 |
Freezing power |
3P |
3P |
5P |
5P |
10P |
10P |
15P |
Freezing capacity |
200L |
300L |
300L |
500L |
500L |
1000L |
1000L |
Filtration precision |
0.2um |
0.2um |
0.2um |
0.2um |
0.2um |
0.2um |
0.2um |
